Tested The Blue ESR Meter
Well, i have installed and fixed the Blue ESR meter kitset and it only took me about 1 and a half hour to fully complete assembled it. I have also calibrated the meter too. The time that i have taken to fix the blue esr meter compare to dick smith esr meter is faster most probably due to the components value and part number were printed on the PCB board. In the dick smith esr meter board, the pcb board labelled as R2, C1, Q3 and etc but this blue esr meter pcb board labelled it as 10k, 330 nf, 100 uf and so on. You just have to insert the components right into the pcb holes and solder it. All these remove guesswork and speed up the assembling time.The manual given is in pdf file, if possible print it out for easy reference!

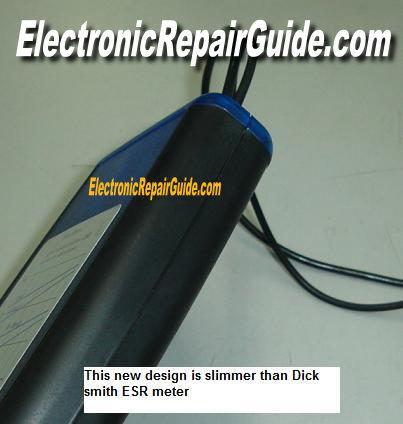

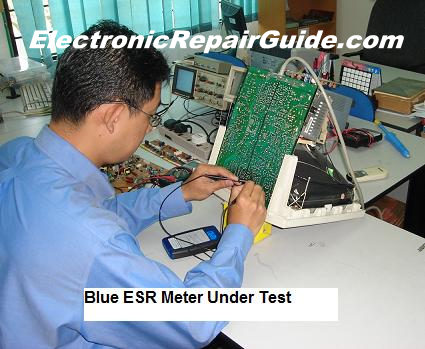

After fixing the blue esr meter kitset i used it to test electrolytic capacitors in a CRT monitor. The result that i got is similar to dick smith esr meter. It was fast and have a easy reference chart in the front panel of the blue esr meter. For your information , this blue esr meter can check low ohms resistors too where your normal analog/digital meter can’t test it. If you already have the dick smith esr meter, don’t buy this meter. If you do not own any esr meter, then i strongly suggest that you get one as soon as possible because esr meter can truly save your troubleshooting time and it is very accurate in testing electrolytic capacitors.
In fact I’ve already got the distributorship from anatek to sell this meter to ASIA, Malaysia and to Australia market-you can buy from me too if your country is not listed in my distribution list. It will take another week for me to completely finished the blue esr meter webpage that can take order worldwide. Buy from my coming website and i will personally support you just in case if you have any problems or questions related to fixing or using the blue esr meter. I will inform you through email (if you are a ERG member you will receive my email soon). Please take a closer look again of this fantastic blue esr meter photos:
